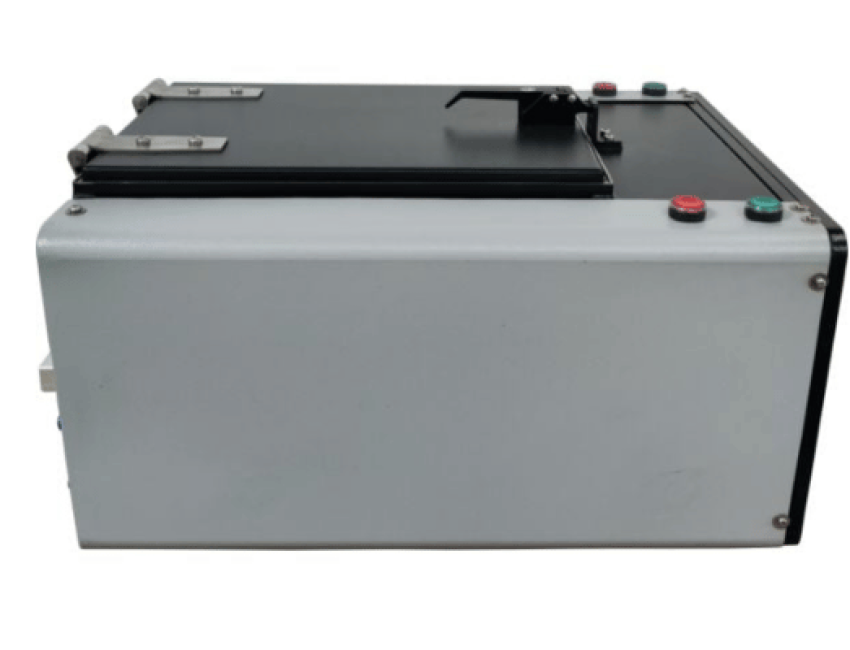

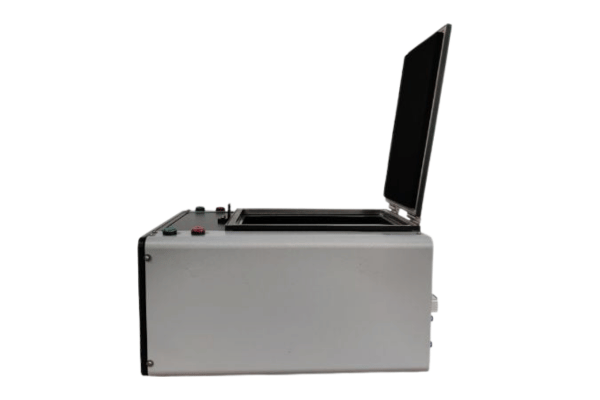

TSI3100 PNEUMATIC RF SHEILDED ENCLOSURE

The TSI3100 Pneumatic RF Shielded Box with drawer by Technostrom Innovations Private Limited is engineered for seamless integration into production lines and diverse industrial testing applications. Featuring a robust pneumatic mechanism, it supports high-volume automated testing with precision and reliability. This enclosure offers a wide selection of RF I/O connectors, data ports, and power options, along with high-grade RF absorbers that effectively suppress internal signals to minimize interference. The TSI3100 is fully customizable, with interchangeable plug-in RF modules that allow flexible I/O configurations tailored to your testing needs. Looking for a personalized RF testing solution? Get in touch with us—our team will be happy to design a tailor-made enclosure that meets your exact specifications.

Our Solutions & Benefits

Excellent shielding performance
Completely Customizable Shielded Enclosure
High Performance RF Absorber lining
User Defined & Interchangeable I/O Connector options
Rugged Welded Construction
EMI filters on Data Ports
RF Fitted Gasket System
Powered by AC / DC Power Filter lines
Lightweight Rack Mountable or Tabletop Options
High performance shielded Air Vents for adequate air flow

Highlights

SHIELDING EFFECTIVENESS (ISOLATION)

85dB @ 20 MHz ~ 1 GHz

90dB @ 1 GHz ~ 3 GHz
90dB @ 3 GHz ~ 6 GHz
85dB @ 6 GHz ~ 12 GHz

DIMENSION

Exterior : 12″H x 20″W x 24″D

Interior : 10″H x 18″W x 22″D

Fill The Form Below

TECHNOLOGIES SUPPORT

Supports Current and future wireless communication technologies such as 3G, 4G, 5G LTE
Wi-Fi 802.11 - all series
Wi-Max, GNSS, Bluetooth
EMI, RFI test
Device Testing, over the air measurements, Pre-compliance
R&D, Product verification, Performance reliability, Quality

USER-DEFINED - I/O OPTION

Filtered Ethernet - 10M, 100M, 1G
Filtered USB 2.0 & 3.0
AC / DC Power line filter
Signal transmission RF connectors
RF Ports: SMA, SMB, BNC, TNC, UHF.
Fiber optics: ST Waveguide
Data: DB9, DB15, DB25, DB50, RJ11
Filtered HDMI, VGA & Audio Ports
Air ventilation with AC or DC fan
High performance shielded Air Vents
