TSI2070 RF SHIELDED TEST ENCLOSURE
TSI2070 RF SHIELDED TEST ENCLOSURE

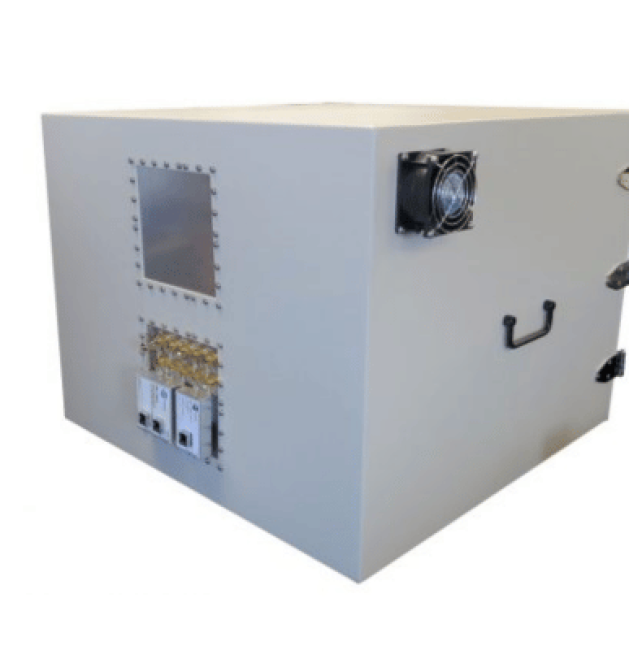

The TSI2070 RF Shield Box from Technostrom Innovations Private Limited is a versatile, manually operated front-loading benchtop shielding enclosure designed to deliver superior RF shielding performance across a wide range of frequencies and testing scenarios. It is an ideal choice for engineers requiring flexibility and precision in RF testing.
With full customization options, users can tailor I/O connectors, EMI filter data ports, and power line filters to meet specific testing requirements. In addition, Technostrom offers a comprehensive range of custom-built RF-shielded enclosures, empowering engineers to effectively conduct wireless device testing in R&D, development, and production environments.
Features
- High Performance RF Absorber lining
- EMI filters on Data Ports and Power lines
- User Defined & Interchangeable I/O Connector options
- Design and Develop for Wireless Device Testing
- Completely Customizable Shielded Enclosure
- Rugged Welded Construction
- RF Gasket System
- High performance shielded Air Vents for adequate air flow
Applications
- Cellular 4G,5G,LTE, Wimax
- Bluetooth and Zigbee
- Wi-Fi 802.11 - All series
- R&D and Quality Assurance Tests
- Forensics and Security
- Wireless Device Testing
- Wireless Medical Device
Fill The Form Below
Highlights
SHIELDING EFFECTIVENESS (ISOLATION)
- 85dB @ 20 MHz ~ 1 GHz
- 95dB @ 1 GHz ~ 3 GHz
- 90dB @ 3 GHz ~ 6 GHz
- 85dB @ 6 GHz ~ 12 GHz
DIMENSION
- Exterior : 19″H x 14″W x 28″D
- Interior : 16″H x 12″W x 26″D
TSI2070 Shielded Enclosure comes with the following
- RF Ports : SMA Bulkhead Connector
- Filtered USB 3.0
- Filtered RJ24
- AC Power line Filter Voltage Range 110 ~ 270V - 50/60 Hz
- DC Power - 5A Jack Connector
- Honeycomb Air Vents 120 mm x 120 mm

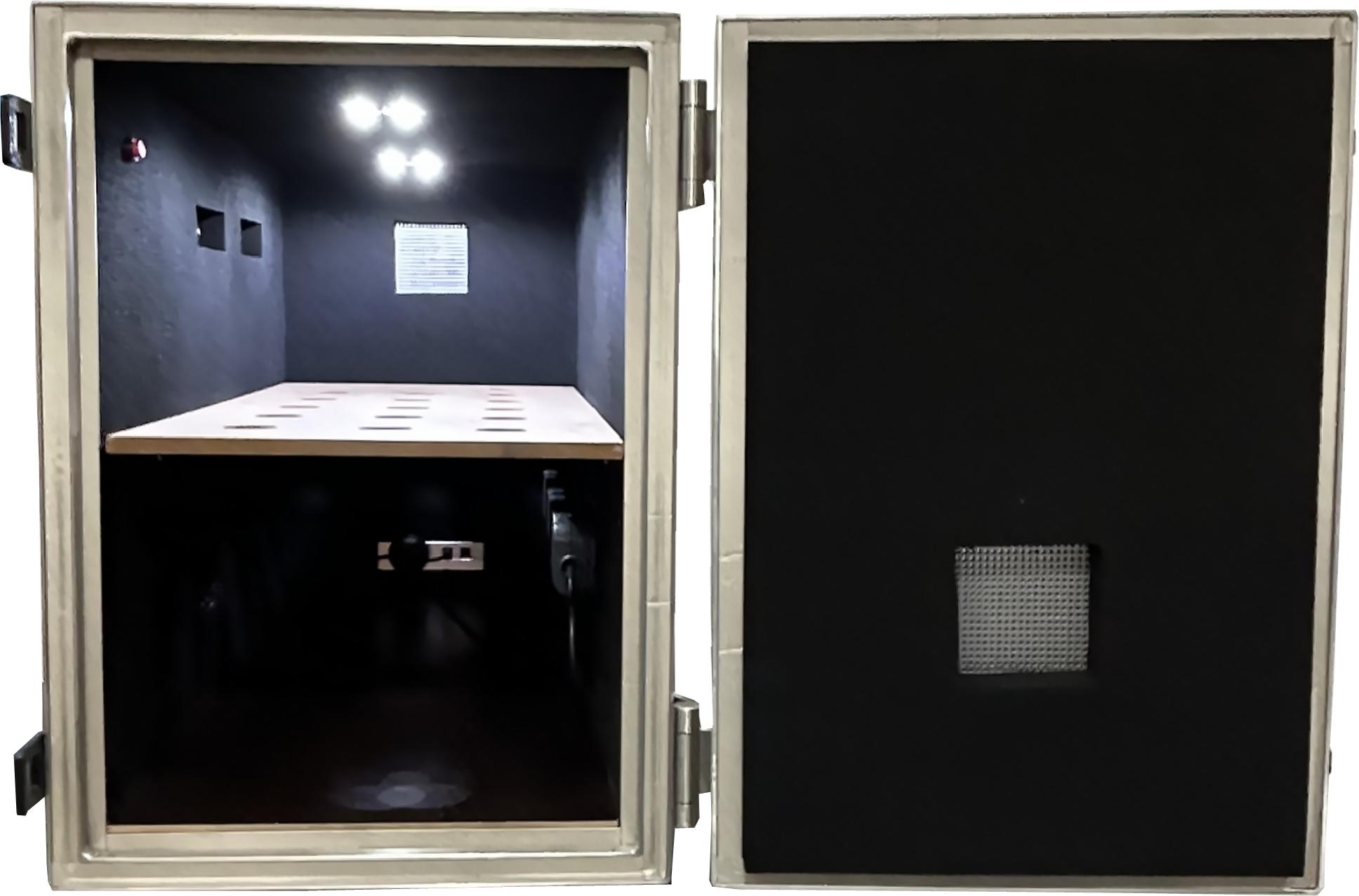

- 1” RF Absorber for dampening internal signal reflections
- Higher CFM Fan size of 120mm
- Base wooden plate to place DUT
- IEC Power cords
- Belkin Power Strip 6 Way Universal Sockets
USER-DEFINED - I/O OPTION
- Filtered Ethernet - 10M, 100M, 1G & 10G
- Filtered USB 2.0 & 3.0 –C Type
- AC / DC Power line filter
- RF Ports: SMA, N Type, BNC, TNC
- Fiber optics: ST & Waveguide
- Data: DB9, DB15, DB25, DB50, RJ11
- Filtered HDMI, VGA & Audio Ports
