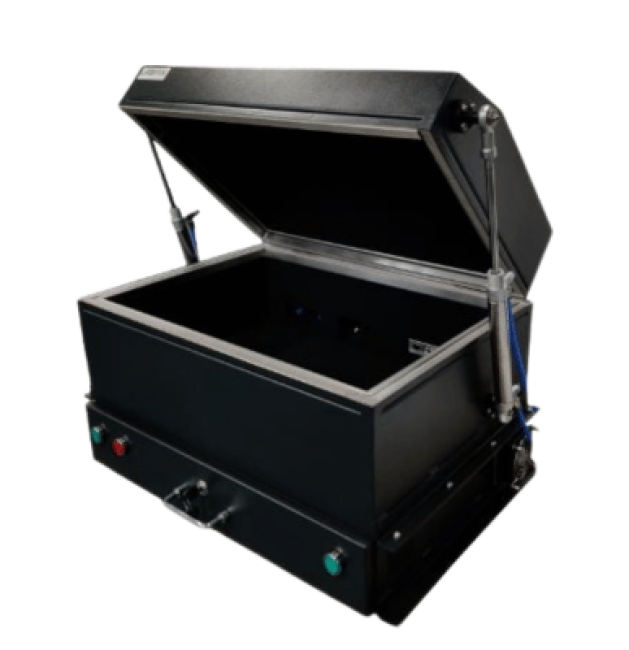

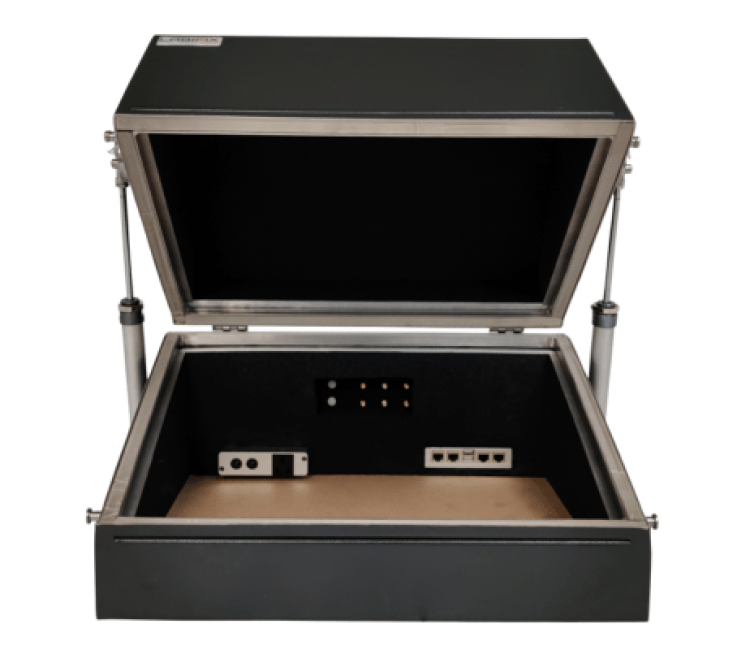

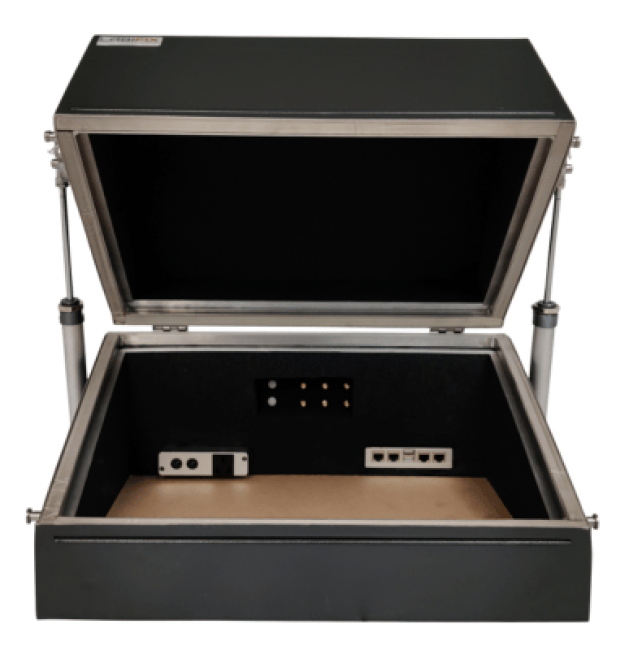

TSI3000 Pneumatic with drawer RF shielded chamber
TSI3000 Pneumatic with drawer RF shielded chamber
The TSI3000 from Technostrom Innovations Private Limited is a high-performance pneumatic RF shielded enclosure with drawer—purpose-built for production lines and a wide range of industrial testing applications. Its intelligent design ensures repeatable open-close automation, making it ideal for high-throughput test environments. Equipped with a wide selection of RF connectors, data ports, and power options, along with premium RF absorber materials for superior internal signal dampening, the TSI3000 can be fully customized to meet your specific testing requirements. Engineers rely on the TSI3000 to establish a reliable and cost-effective automated RF test setup, ensuring accurate validation and protection from external interference—perfect for modern wireless testing environments.
Our Solutions & Benefits
- Excellent shielding performance
- Completely Customizable Shielded Enclosure
- High Performance RF Absorber lining
- User Defined & Interchangeable I/O Connector options
- Rugged Welded Construction
- EMI filters on Data Ports
- RF Fitted Gasket System
- Powered by AC / DC Power Filter lines
- Lightweight Rack Mountable or Tabletop Options
- High performance shielded Air Vents for adequate air flow
Highlights
SHIELDING EFFECTIVENESS (ISOLATION)
- 85dB @ 20 MHz ~ 1 GHz
- 90dB @ 1 GHz ~ 3 GHz
- 90dB @ 3 GHz ~ 6 GHz
- 85dB @ 6 GHz ~ 12 GHz
DIMENSION
- Exterior : 12″H x 17″W x 24″D
- Interior : 10″H x 15″W x 22″D
Fill The Form Below
TECHNOLOGIES SUPPORT
- Supports Current and future wireless communication technologies such as 3G, 4G, 5G LTE
- Wi-Fi 802.11 - all series
- Wi-Max, GNSS, Bluetooth
- EMI, RFI test
- Device Testing, over the air measurements, Pre-compliance
- R&D, Product verification, Performance reliability, Quality
USER-DEFINED - I/O OPTION
- Filtered Ethernet - 10M, 100M, 1G
- Filtered USB 2.0 & 3.0
- AC / DC Power line filter
- Signal transmission RF connectors
- RF Ports: SMA, SMB, BNC, TNC, UHF.
- Fiber optics: ST Waveguide
- Data: DB9, DB15, DB25, DB50, RJ11
- Filtered HDMI, VGA & Audio Ports
- Air ventilation with AC or DC fan
- High performance shielded Air Vents
