TSI8000 WLAN AND WIRELESS DEVICE TESTING SHIELDED CHAMBER
TSI8000 WLAN AND WIRELESS DEVICE TESTING SHIELDED CHAMBER

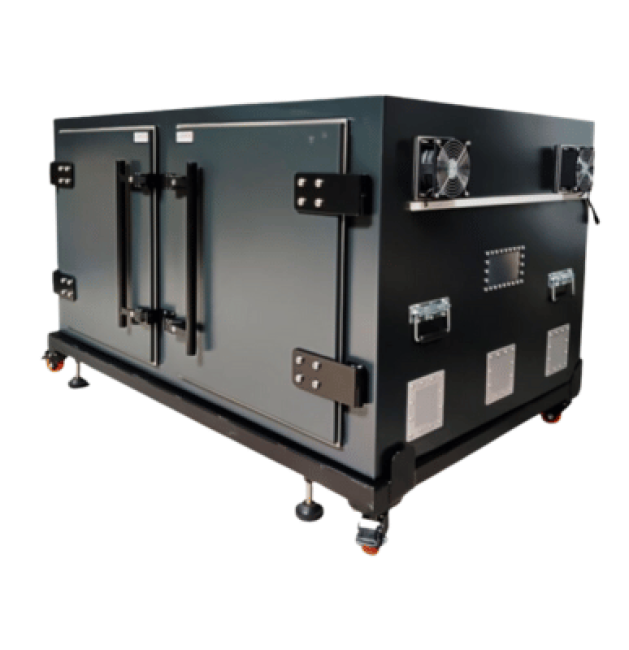

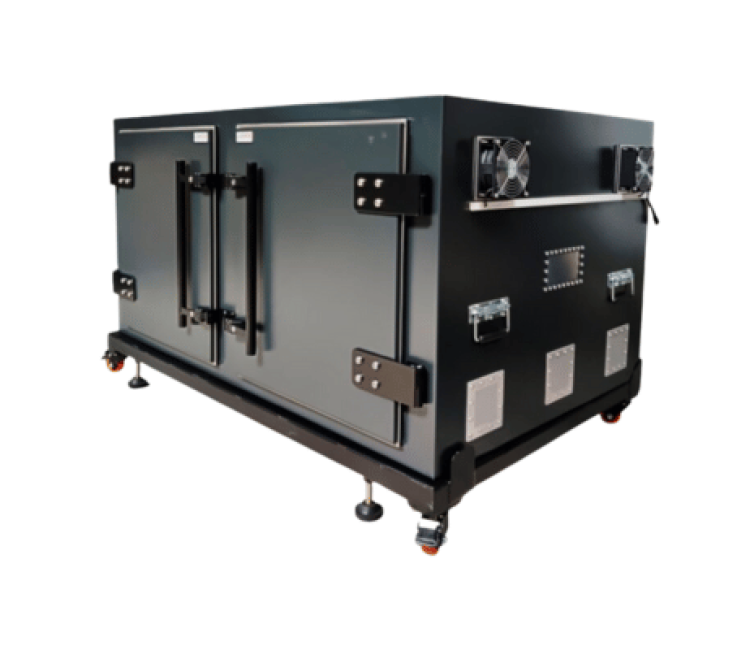

The TSI8000 RF Shielded Test Enclosure from Technostrom Innovations Private Limited is a spacious, high-performance solution designed for advanced RF testing needs. Featuring a large double-door front opening, this enclosure is ideal for accommodating multiple devices such as laptops, desktop computers, and other large electronics. Optional internal compartments allow for organized placement of Devices Under Test (DUTs), enhancing testing efficiency. Engineered for exceptional shielding effectiveness, the TSI8000 includes filtered AC & DC power lines, filtered data lines, and high-quality RF connectors. Every aspect—including I/O options, internal layout, dimensions, and shielding performance—can be fully customized to your specifications. Whether for R&D, product validation, or quality assurance, the TSI8000 is built to deliver optimal RF isolation and testing accuracy across a broad range of applications.
Our Solutions & Benefits
- Excellent shielding performance
- Completely Customizable Shielded Enclosure
- High Performance RF Absorber lining
- User Defined & Interchangeable I/O Connector options
- Rugged Welded Construction
- EMI filters on Data Ports
- RF Fitted Gasket System
- Powered by AC / DC Power Filter lines
- Lightweight Rack Mountable or Tabletop Options
- High performance shielded Air Vents for adequate air flow
Highlights
SHIELDING EFFECTIVENESS (ISOLATION)
- 90dB @ 1 GHz ~ 3 GHz
- 90dB @ 3 GHz ~ 6 GHz
- 85dB @ 6 GHz ~ 12 GHz
DIMENSION
- Exterior:30″H x 59″W x 37″D
- Interior:28″H x 57″W x 35″D
Fill The Form Below
TECHNOLOGIES SUPPORT
- Supports Current and future wireless communication technologies such as 3G, 4G, 5G LTE
- Wi-Fi 802.11 - all series
- Wi-Max, GNSS, Bluetooth
- EMI, RFI test
- Device Testing, over the air measurements, Pre-compliance
- R&D, Product verification, Performance reliability, Quality

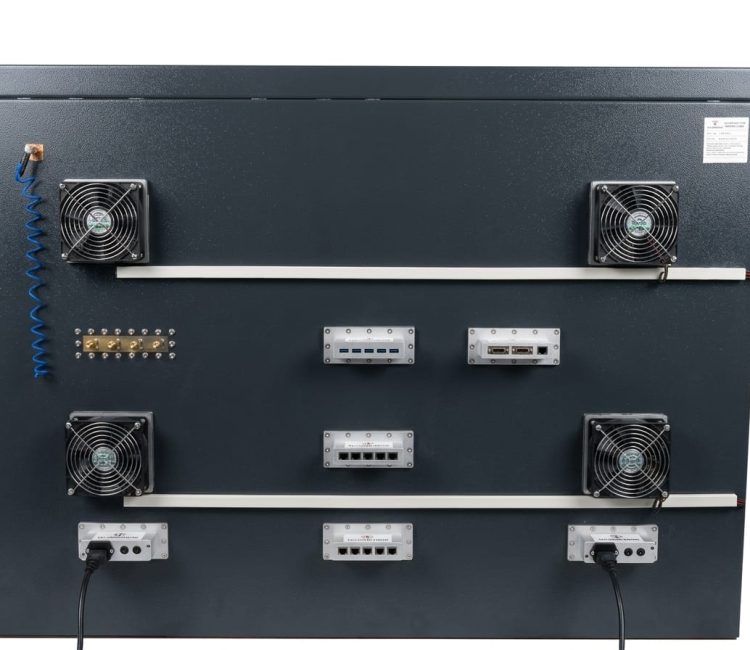

USER-DEFINED - I/O OPTION
- Filtered Ethernet - 10M, 100M, 1G
- Filtered USB 2.0 & 3.0
- AC / DC Power line filter
- Signal transmission RF connectors
- RF Ports: SMA, SMB, BNC, TNC, UHF.
- Fiber optics: ST Waveguide
- Data: DB9, DB15, DB25, DB50, RJ11
- Filtered HDMI, VGA & Audio Ports
- Air ventilation with AC or DC fan
- High performance shielded Air Vents
